◆ For the visualization and operation of processes, production flows and plants.






■ 접근할 수 없는 영역으로만 알고 계시던   HMI System에
 상용화된 SIEMENS의 WinCC (Windows Control Center)
 를 적용하여 누구든지 언제나 편리하게 수정 가능한
 Visualization System을 구현합니다

   → 운전과 감시를 위해 누구가 수정가능한 Graphic 설계
   → 현장에서 작업 진행사항을 한 눈에 파악할 수 있는
       모니터링 환경
   → 시간제어와 Faults 발생을 출력하기 위한 자유로운
       Report 형식

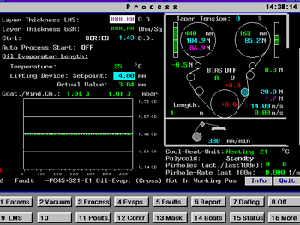

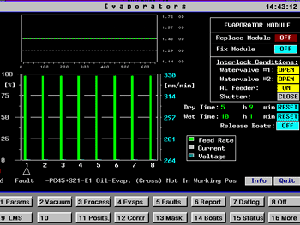

■ WinCC Visualization 샘플 자료 1

   → PLC System : SIMATIC S5-135/155U and CPU 928B
   → SIMATIC NET : Industral Ethernet / Serial Interface
   → Communication Processor : CP1430TF / CP544
   → O/S : Windows NT 4.0

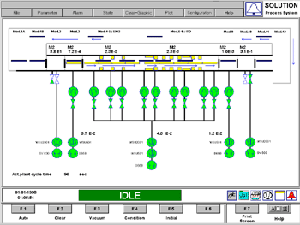

■ WinCC Visualization 샘플 자료 1

   → PLC System : SIMATIC S5-135/155U and CPU 928B
   → SIMATIC NET : Industral Ethernet / Serial Interface
   → Communication Processor : CP1430TF / CP544
   → O/S : Windows NT 4.0
